VB400 video balun
Features:
- No power is required
- Transmit video signal via Unshielded Twisted Paired (UTP) wires
- Real time video transmission at distances up to 330m when passive receiver is used
- Real time video transmission at distances up to 1500m when active
receiver is used - Built-in TVS (Transient Voltage Suppressors) for surge protection
- 60dB crosstalk and noise immunity
- "Press-Fit" terminal block
- Compact size and easy to install
- Support NTSC, PAL and SECAM video format
Technical Specifications
| Model | VB400 | |
| Frequency Response | 8MHz | |
| Attenuation | 0.5dB | |
| Common Mode Rejection Ratio (CMRR) | 60dB | |
| Connectors | Male BNC and "Press-Fit" Terminal Blocks | |
| Impedance | BNC | 75Ω |
| Terminal | 100Ω | |
| Operating Temperature | -10℃ - +70℃ | |
| Storage Temperature | -30℃ - +70℃ | |
| Humidity | 0 - 95% | |
| Dimension | 39mm ×16mm ×19mm (Not Include Connectors) | |
| Weight | 88g (Pair) | |
| Material | ABS Plastic | |

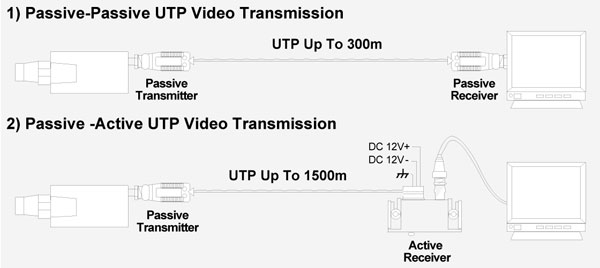

Application Diagram
